A "Simple Image" is a single, standard photo activation, with the option of overlay. Green screen is available with Pro package events.

Click the gear icon on a Photo Node in your Booth Design layout to open the settings for that node.

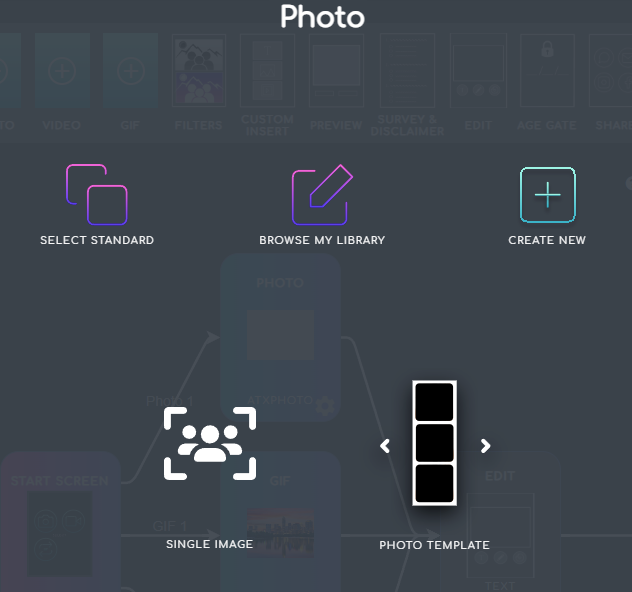

In Photo Node settings, select "Create New" and select the "Simple Image" option. (Use "Browse My Library" to choose from video activations you've already created on your account).

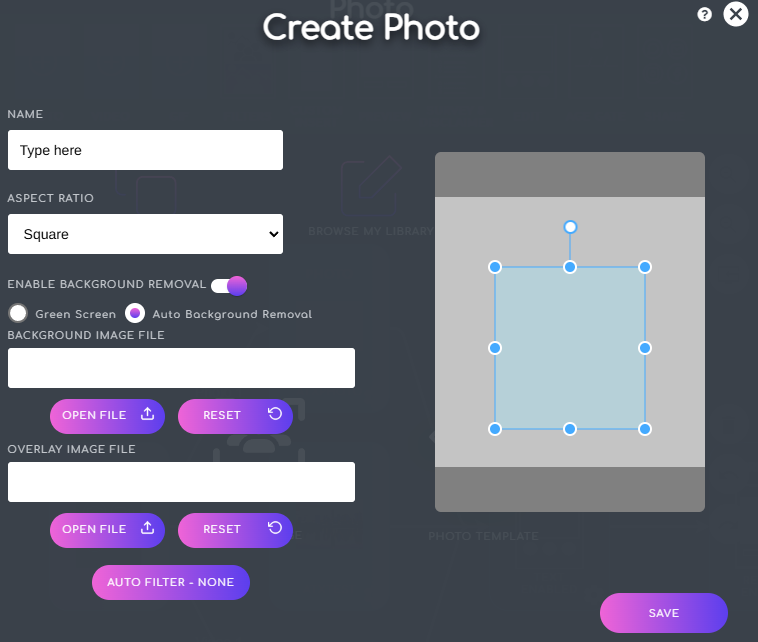

This will launch the "Create Photo" editor.



Always give your new activation a name.



Background removal is available for Pro package events and with the Green Screen Add-On for Basic events. Basic events without the add-on will not be able to use Background removal.

Choose between Green screen or Auto if you are not using a green screen.


Upload the Background and overlay Graphics here.




THINGS TO KEEP IN MIND:

  • Backgrounds must be JPEG
  • Overlays must be PNG with transparency
  • Output Aspect Ratio of the created content will be based on the uploaded Background
  • Maximum image resolution will be based on the uploaded background
  • Background and Overlay aspect ratios must match

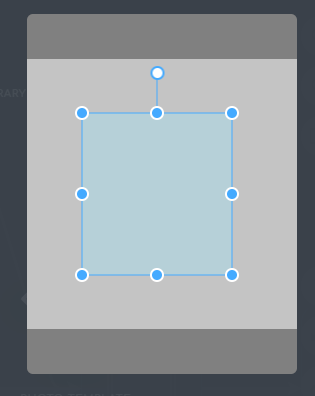

You can adjust the rotation and scale of the "photo holder" for guest placement against your background and overlay, using the preview on the right-hand side.



Now, more about non-green screen simple images.


If you Disable the Green Screen option, the placement and background options are disabled. Disabling green screen means that this photo node will not use the app's green screen settings and no background removal will occur.


When green screen is disabled, you'll set your activation's aspect ratio using the dropdown menu.


You can upload an Overlay even with Green Screen disabled. Just make sure that you are using a PNG with transparency that has the desired aspect ratio.


With or without Green Screen enabled in Simple Image, you can turn on Auto Filter for the node.


Click the Auto Filter button and you'll be given the option to select from one of the available filters. The filter selected here will be applied to every photo taken using this node.




And those are the basics of Simple Image setup!


Questions? Contact [email protected]
