The Redux version of Kiosk app for iPad works similarly to the existing version, but with some added features/updates:
- Redux can be run in both Portrait and Landscape mode (the app will auto-rotate depending on the orientation of the screen)
- Media order can be sorted by showing the recent photos on the left or right side
- Improved connectivity to Helper

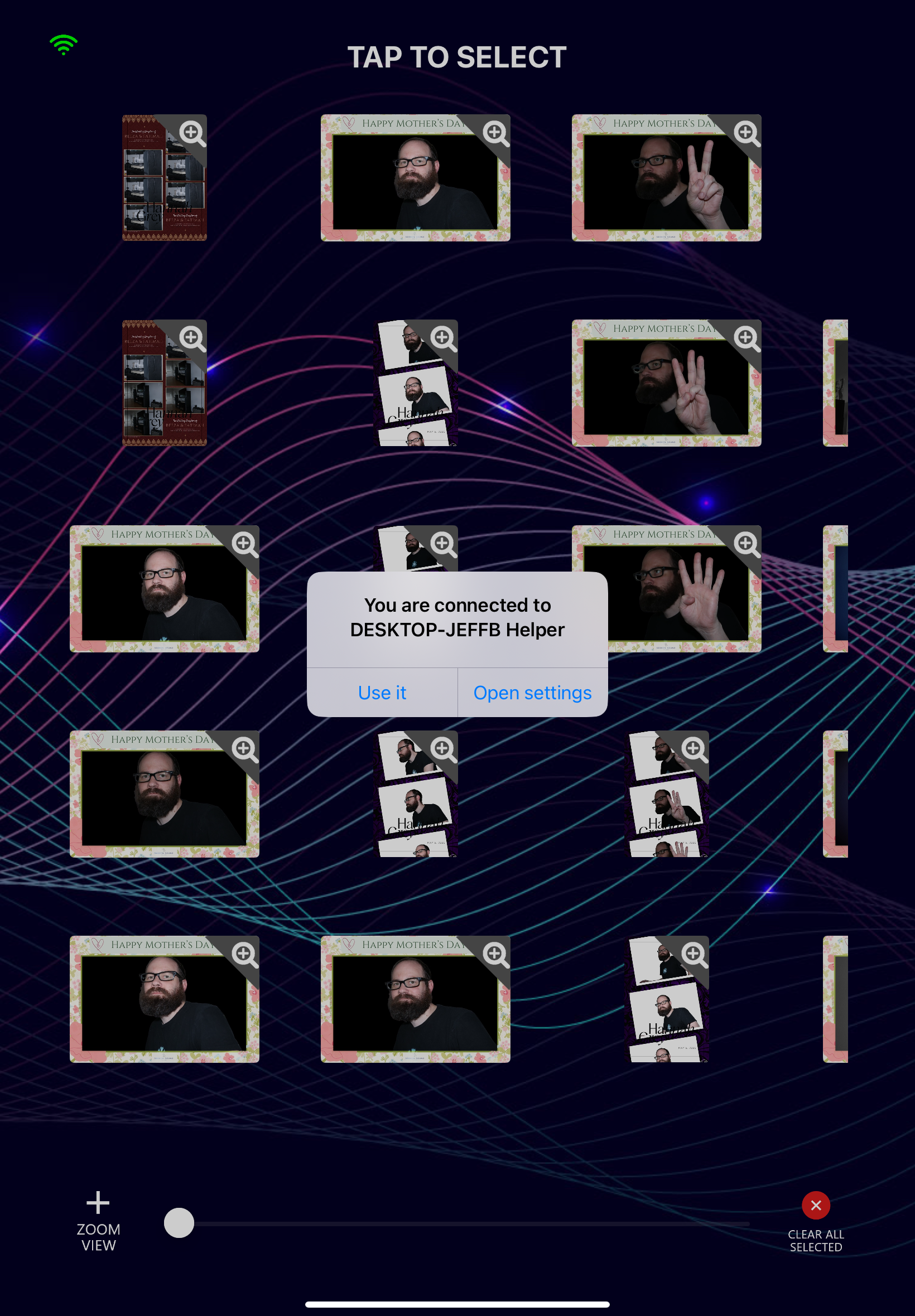

When you launch the app, you will be prompted to connect to the Helper Tool on the same network. Select 'Use it'. Here you will see any photos in the Watched Folder and ready for sharing/printing. In order to adjust Kiosk settings, you will long press on the wifi icon (on the top left):
The following tabs will appear:

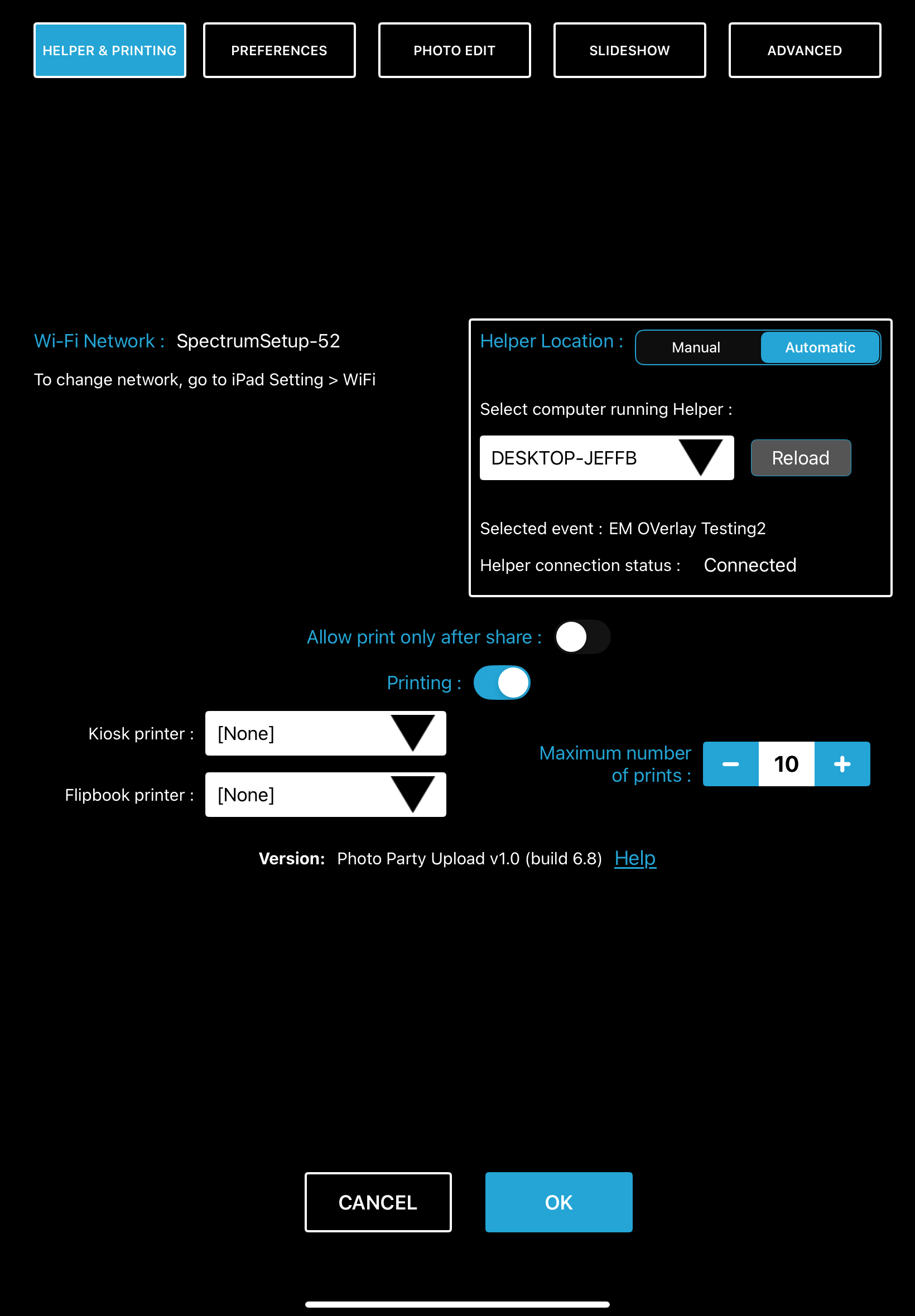

Helper and Printing
Helper Location - Select the Helper running on the photo capture PC (note: this should auto-select)
Allow print only after share - This forces the user to share digitally before they can print (helpful more capturing user data for marketing campaigns)
Kiosk Printer - By default the prints sent to the Capture/Host PC will automatically print, but if you have more than one printer attached you can select which printer handles prints out of Kiosk
Flipbook Printer - Assign which printer you want to use (if more than are plugged in) when printing GIFs for Flipbooks
Maximum number of prints - Assign the Max number of prints guests can choose (per photo). This helps preserve printer media, especially for guests who want to order an unnecessary amount of prints

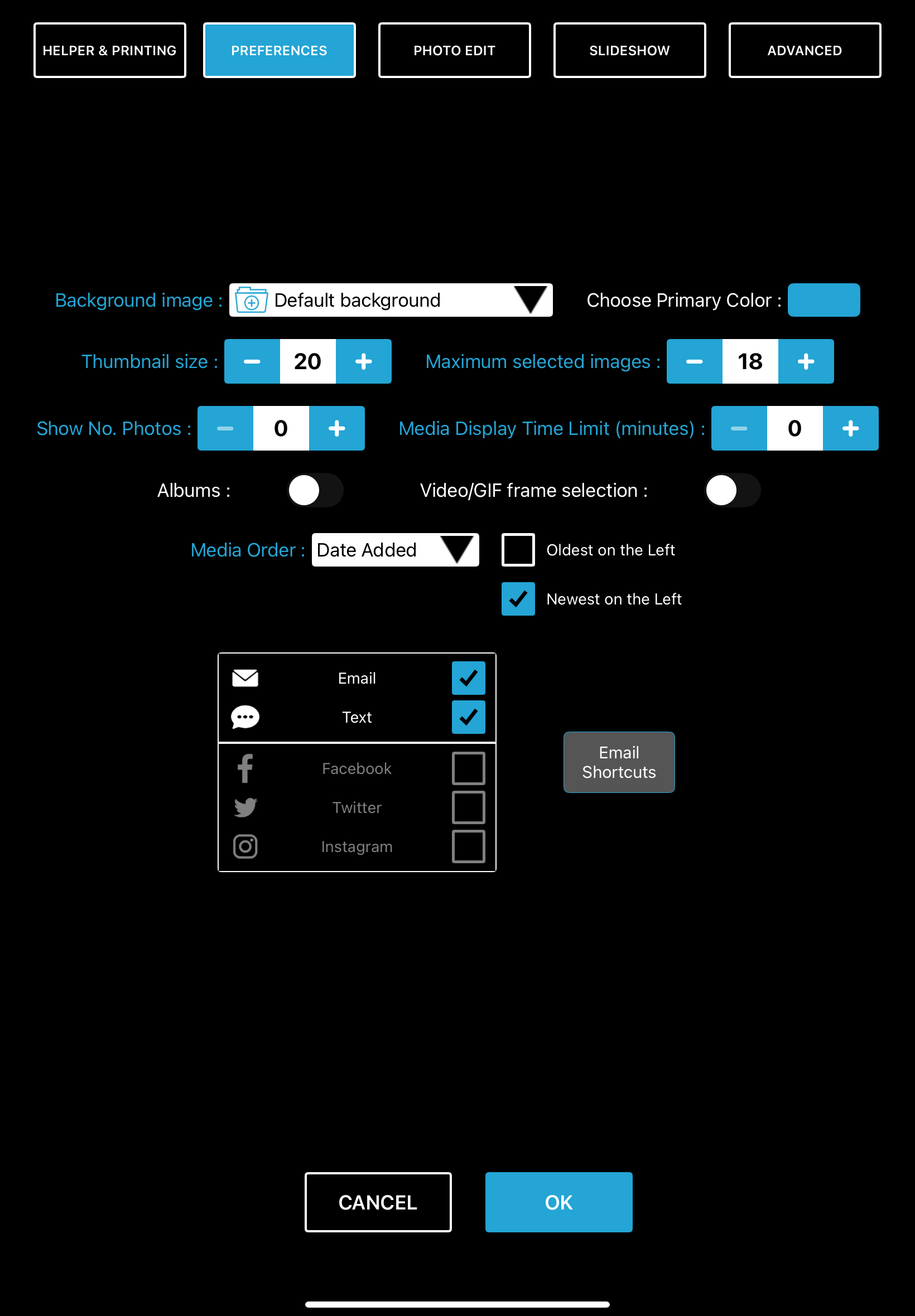

Preferences
Background Image - with this option you can browse to a JPG file stored on the iPad that will be set as the background for the Kiosk UI
Thumbnail Size - adjust the size of the thumbnail images to your liking
Show No. Photos - this will only show the last photos captured (Ex: Setting to 3 will show the last 3 photos captured - for security reasons)
Choose Primary Color - adjust the color to your liking (this will replace the default blue color on the Gallery/Home screen and in the menu)
Maximum Selected Images - set a limit on the max number of images users can share/print
Media Display Time Limit - Sets the number of minutes photos appear once captured (for security reasons)
Media Order - Choose if you want new photos to show up on the left side of the gallery or the right side of the gallery

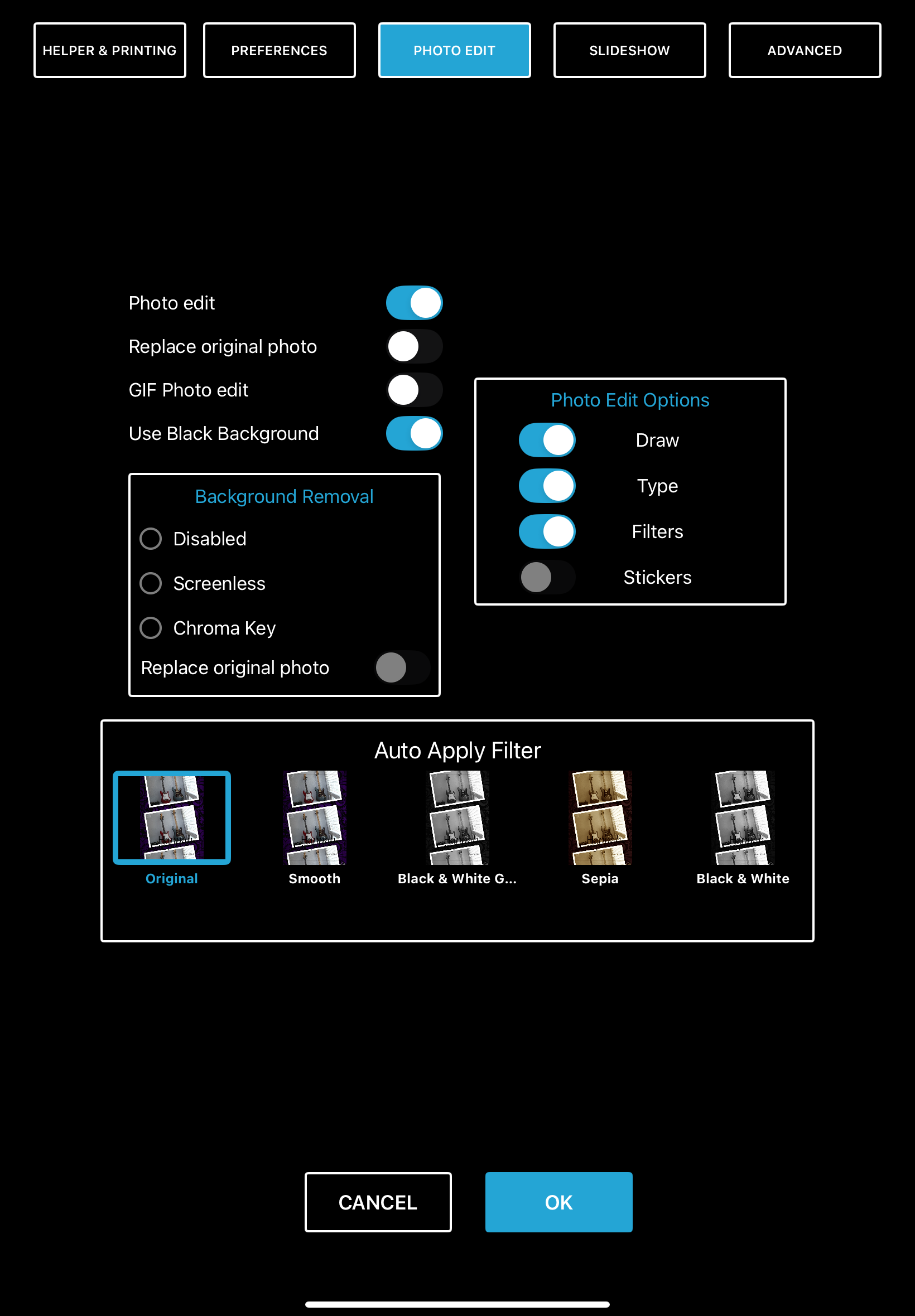

Photo Edit
Photo edit - Enable this if you want to add Draw/Type/Filters/Stickers. This will allow guests to interact with and customize the photos
Replace Original Photo - This will replace the Original photo with the edited photo
GIF Photo edit - Allows the edit options to be used with GIFs
Auto Apply Filter - Selects a filter that will be auto applied to photos/GIFs

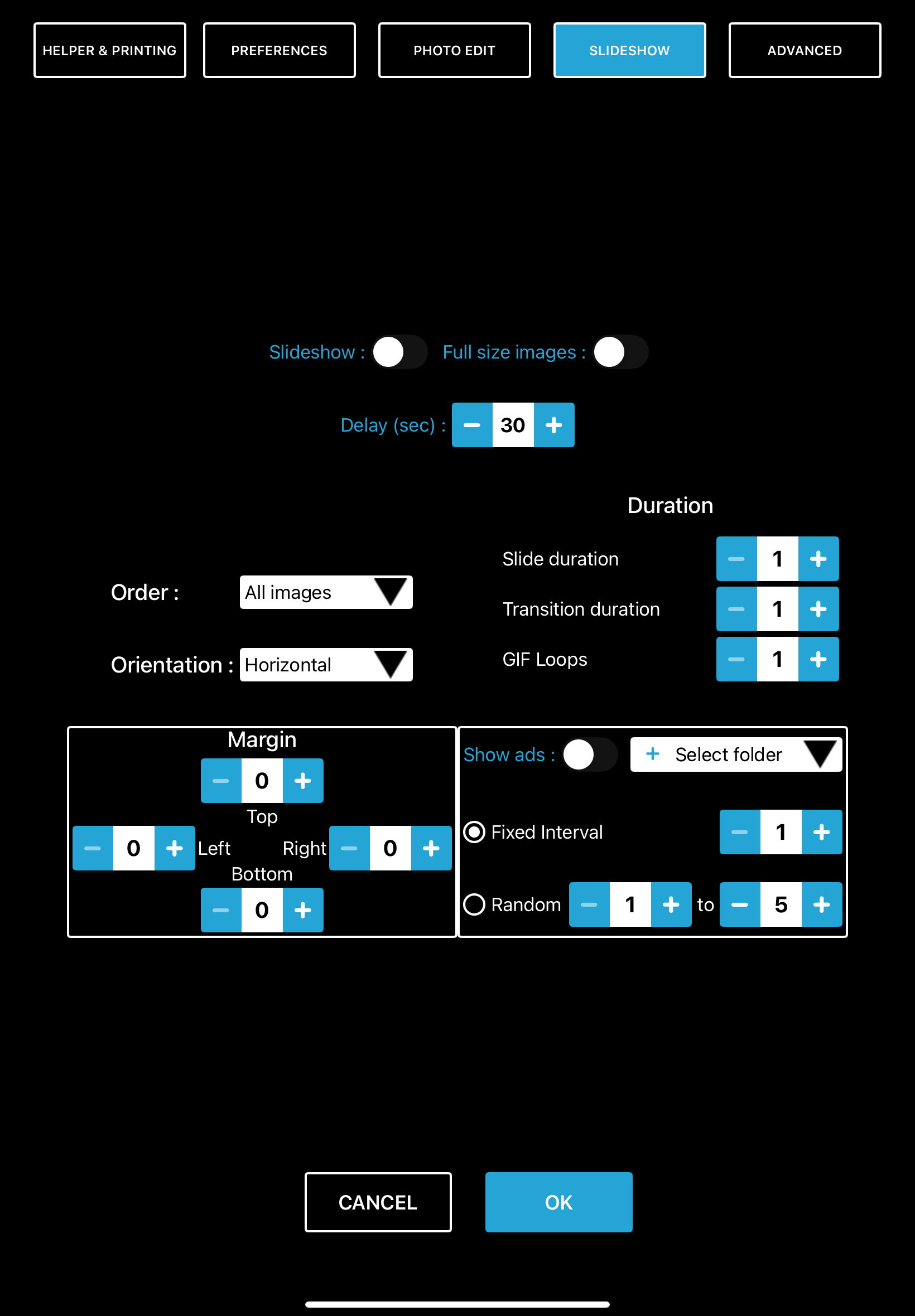

Slideshow
Slideshow - Enables the Slideshow on the iPad
Full size images
Order - choose between All Images, Most Recent, Random, or Most recent + All
Orientation - Choose the orientation of the slideshow photos/GIFs (Horizontal, Rotate Right, Rotate Left)
Slide Duration - How may seconds each photo appears before the next photo populates
Transition duration - How many seconds pass between photos/GIFs populating
GIF Loops - Number of times the GIF plays before the next
Margin - Adjusts the slideshow margins to fit the photos/GIFs into the screen
Show Ads - Here you can select a folder with image content, and choose the interval these ads appear within the slideshow

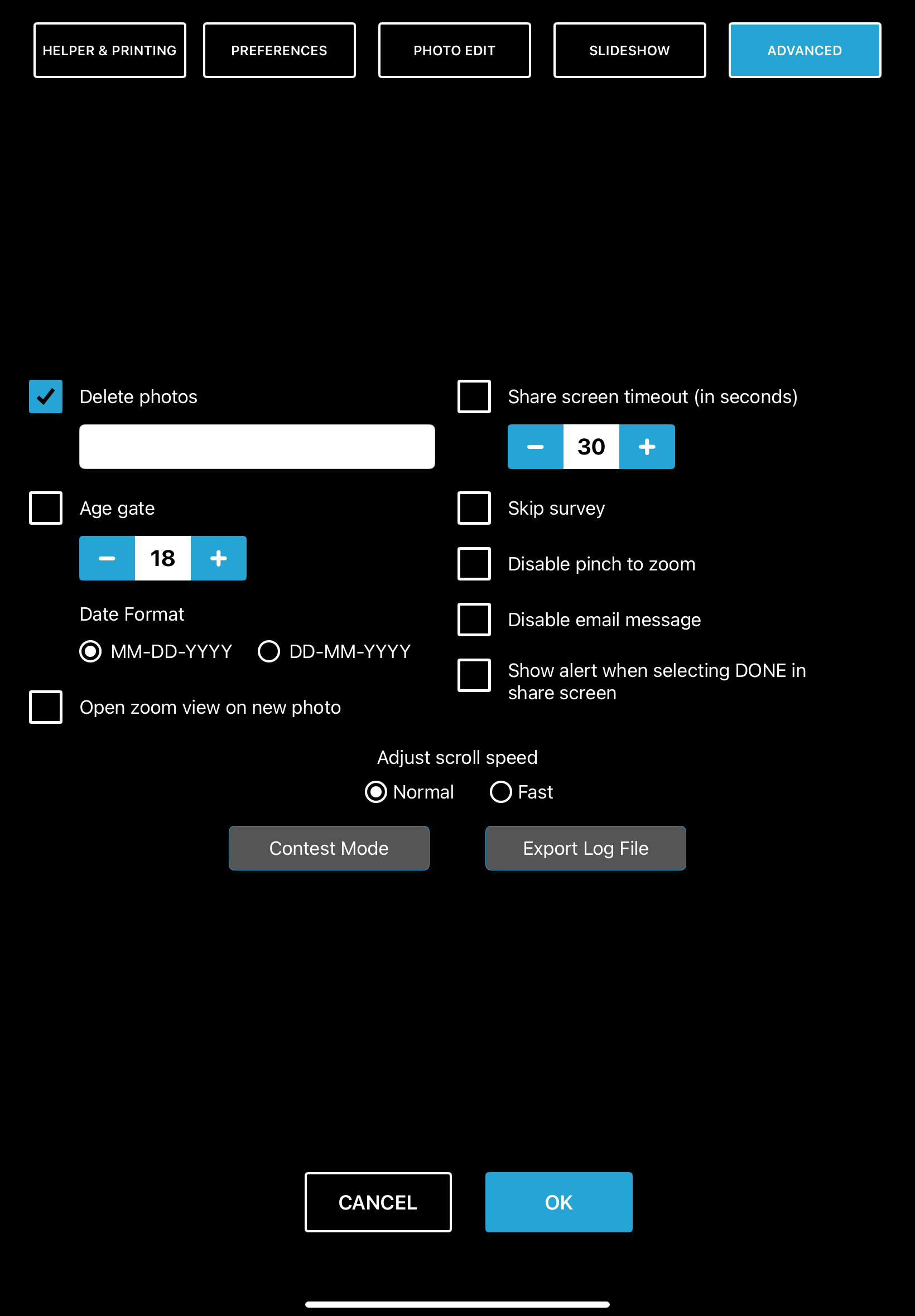

Advanced
Delete Photos - Will allow attendants to delete photos in the gallery. Set a password, and then going forward images in the gallery page can be removed. Select the photo(s) that you wish to delete, and then long press on the red 'Clear All Selected' icon. Enter your password and the selected photos will be removed
Age Gate - Will require guests to enter their date of birth to proceed with sharing/printing
Open zoom view on new photo - When a new photo arrives in the gallery, it will automatically open in full screen mode
Share screen timeout - Sets a time limit (in seconds) for how long the share screen displays before reverting back to gallery view
Skip Survey - If a survey is enabled in the event, this will disable the disclaimer in the app
Disable pinch to zoom - Prevents users from zooming in on an image
Disable email message
Show alert when select DONE in share screen - Displays an alert to ensure guests haven't missed a stepped during sharing/printing
